Tech Pack Example: A Complete Hoodie Tech Pack
This is a complete, filled-in tech pack for a pullover hoodie: 300 pcs in 380gsm 100% cotton loopback French terry with a small chest embroidery and a large back screen print, set out in the ten parts a factory works from.
The brand name and style number are placeholders. Copy the structure for your own garment, start from the hoodie tech pack template, or read the tech pack guide first; terms such as HPS, POM and PP sample are explained in the glossary.
Download this tech pack as a PDF

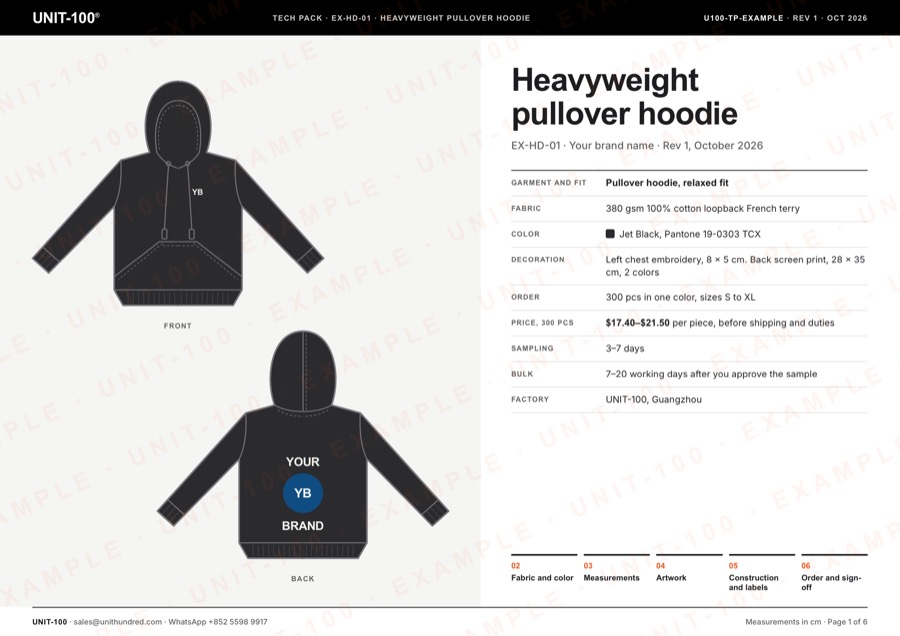

1. Cover page
The cover page identifies this hoodie so every sample, carton and invoice can be traced back to one file.
| Field | Entry |
|---|---|
| Brand | Your brand name |
| Style number | EX-HD-01 |
| Style name | Heavyweight pullover hoodie |
| Tech pack number | U100-TP-EXAMPLE |
| Garment and fit | Pullover hoodie, relaxed fit |
| Date and revision | October 2026, Rev 1 |
| Order | 300 pcs in one color |
| Factory | UNIT-100, Guangzhou |
2. Flat sketches
The flat sketches show the hoodie front and back with the hood, drawcord, kangaroo pocket, rib cuffs and hem, and where the two artworks go.
- Front: small embroidery on the left chest (as worn), see part 5.
- Back: large screen print centered below the hood, see part 5.
- Drawcord exits through two metal eyelets at the hood opening.

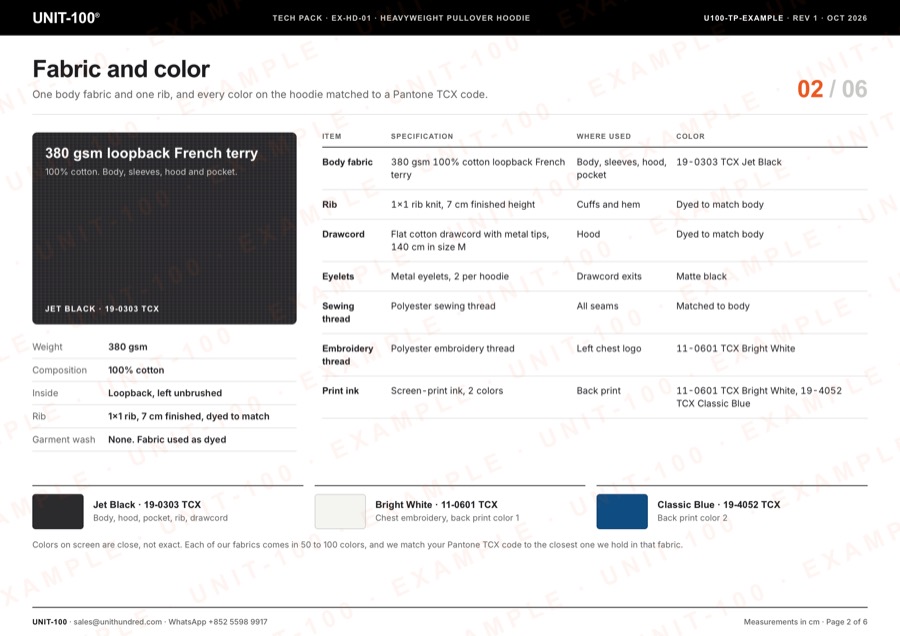

3. Fabric and trims (BOM)
The BOM lists every material in the hoodie: one body fabric, rib, drawcord, eyelets, sewing thread, embroidery thread and print ink.
| Item | Specification | Where used | Color |
|---|---|---|---|
| Body fabric | 380gsm 100% cotton loopback French terry | Body, sleeves, hood, pocket | 19-0303 TCX Jet Black |
| Rib | 1x1 rib knit, 7 cm finished height | Cuffs and hem | Dyed to match body |
| Drawcord | Flat cotton drawcord with metal tips, 140 cm long in size M | Hood | Dyed to match body |
| Eyelets | Metal eyelets, 2 per hoodie | Hood drawcord exits | Matte black |
| Sewing thread | Polyester sewing thread | All seams | Matched to body |
| Embroidery thread | Polyester embroidery thread | Left chest logo | 11-0601 TCX Bright White |
| Print ink | Screen-print ink, 2 colors | Back print | 11-0601 TCX Bright White, 19-4052 TCX Classic Blue |
No garment wash: the fabric is used as dyed, so the size chart uses the unwashed tolerances. Labels and packaging are listed in part 7.

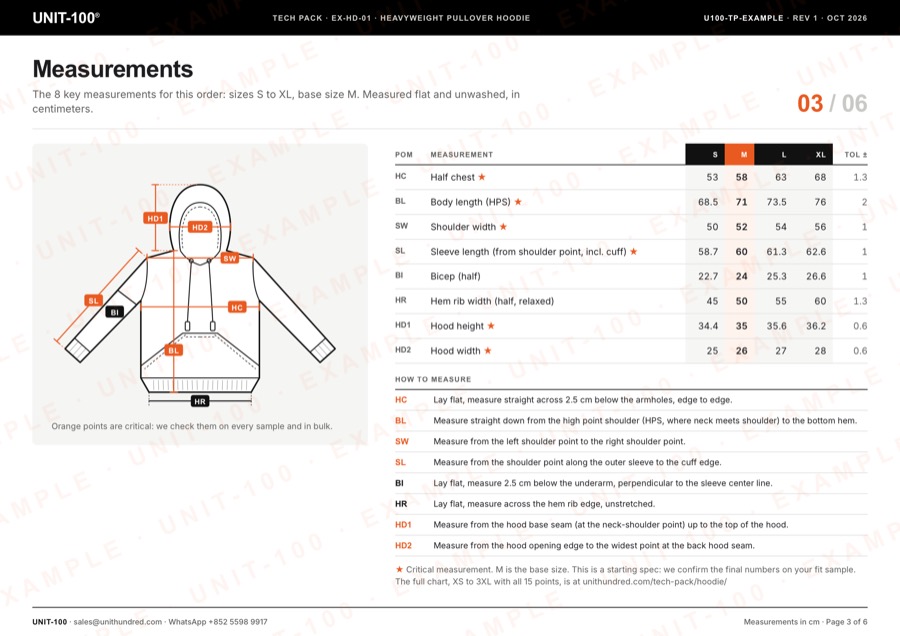

4. Size chart and tolerances
This hoodie is graded from XS to 3XL around base size M. In size M the half chest is 58 cm ±1.3 cm. The table shows the 8 key measurements in this order's sizes, S to XL.
All measurements are taken flat, garment laid on a table, in the unwashed state. Switch between centimeters and inches above the table. ★ marks critical measurements. The 8 key points are drawn on the sketch. Point at or tap one of their rows to see where we measure it.
| POM | Measurement in cm | S | M | L | XL | Tolerance |
|---|---|---|---|---|---|---|
| HC | Half chest ★ | 53 | 58 | 63 | 68 | ±1.3 |
| BL | Body length (HPS) ★ | 68.5 | 71 | 73.5 | 76 | ±2 |
| SW | Shoulder width ★ | 50 | 52 | 54 | 56 | ±1 |
| SL | Sleeve length (from shoulder point, incl. cuff) ★ | 58.7 | 60 | 61.3 | 62.6 | ±1 |
| BI | Bicep (half) | 22.7 | 24 | 25.3 | 26.6 | ±1 |
| HR | Hem rib width (half, relaxed) | 45 | 50 | 55 | 60 | ±1.3 |
| HD1 | Hood height ★ | 34.4 | 35 | 35.6 | 36.2 | ±0.6 |
| HD2 | Hood width ★ | 25 | 26 | 27 | 28 | ±0.6 |
| POM | Measurement in inches | S | M | L | XL | Tolerance |
|---|---|---|---|---|---|---|
| HC | Half chest ★ | 20.9 | 22.8 | 24.8 | 26.8 | ±0.5 |
| BL | Body length (HPS) ★ | 27.0 | 28.0 | 28.9 | 29.9 | ±0.8 |
| SW | Shoulder width ★ | 19.7 | 20.5 | 21.3 | 22.0 | ±0.4 |
| SL | Sleeve length (from shoulder point, incl. cuff) ★ | 23.1 | 23.6 | 24.1 | 24.6 | ±0.4 |
| BI | Bicep (half) | 8.9 | 9.4 | 10.0 | 10.5 | ±0.4 |
| HR | Hem rib width (half, relaxed) | 17.7 | 19.7 | 21.7 | 23.6 | ±0.5 |
| HD1 | Hood height ★ | 13.5 | 13.8 | 14.0 | 14.3 | ±0.2 |
| HD2 | Hood width ★ | 9.8 | 10.2 | 10.6 | 11.0 | ±0.2 |
Draft starting spec, base size M. We confirm final measurements on your fit sample.

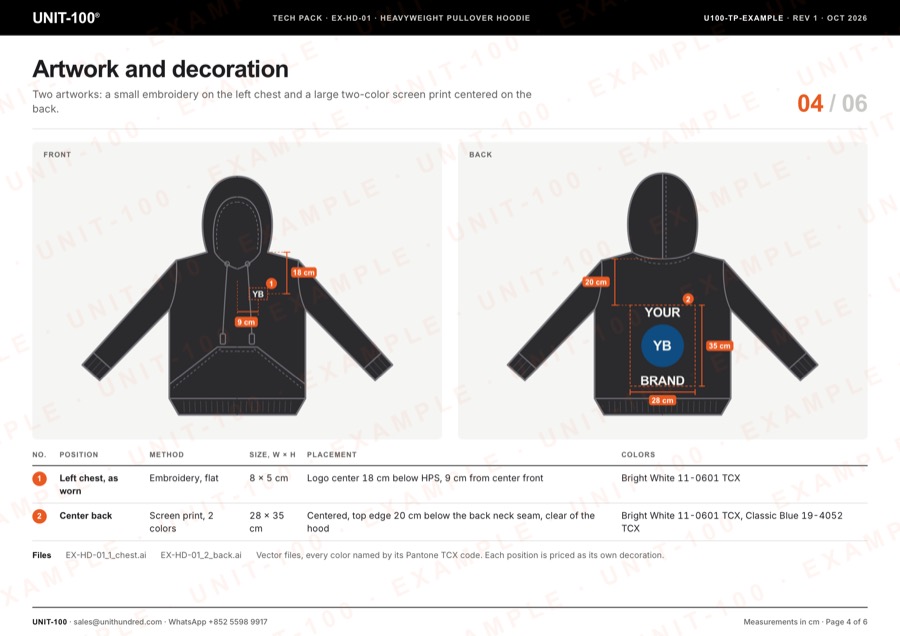

5. Artwork placement
Two artworks are placed on this hoodie: a small embroidery on the left chest and a large screen print centered on the back.
| Position | Method | Size (W × H) | Placement | Colors |
|---|---|---|---|---|
| Left chest (front) | Embroidery, small | 8 × 5 cm | 18 cm below HPS, logo center 9 cm from center front | Bright White 11-0601 TCX |
| Center back | Screen print, large | 28 × 35 cm | Centered, top edge 20 cm below the back neck seam, clear of the hood | Bright White 11-0601 TCX, Classic Blue 19-4052 TCX |
Artwork files are supplied as vectors (AI, PDF or SVG) with every color named by its Pantone TCX code. Each position is a separate decoration add-on.
6. Colors
Every color on the hoodie is given as a Pantone TCX code, so fabric, thread and ink are all matched to the same standard.
| Part | Pantone TCX | Color name |
|---|---|---|
| Body, hood, pocket, rib, drawcord | 19-0303 TCX | Jet Black |
| Chest embroidery thread | 11-0601 TCX | Bright White |
| Back print, color 1 | 11-0601 TCX | Bright White |
| Back print, color 2 | 19-4052 TCX | Classic Blue |
7. Labels and packaging
The hoodie carries a woven neck label, a care label and a hang tag, and is folded into its own polybag.
| Item | Specification | Position |
|---|---|---|
| Woven neck label | Woven brand label, 5 × 2.5 cm, black with white logo | Center back neck, folded into the neck seam |
| Care label | Printed satin label: 100% cotton, machine wash cold, do not tumble dry, Made in China, size | Left side seam, 10 cm above the hem |
| Hang tag | Printed card, 5 × 9 cm, with style number, size and barcode | Through the neck label with a plastic fastener |
| Polybag | Clear polybag with suffocation warning and size sticker, one hoodie per bag | Hoodie folded to about 30 × 35 cm |

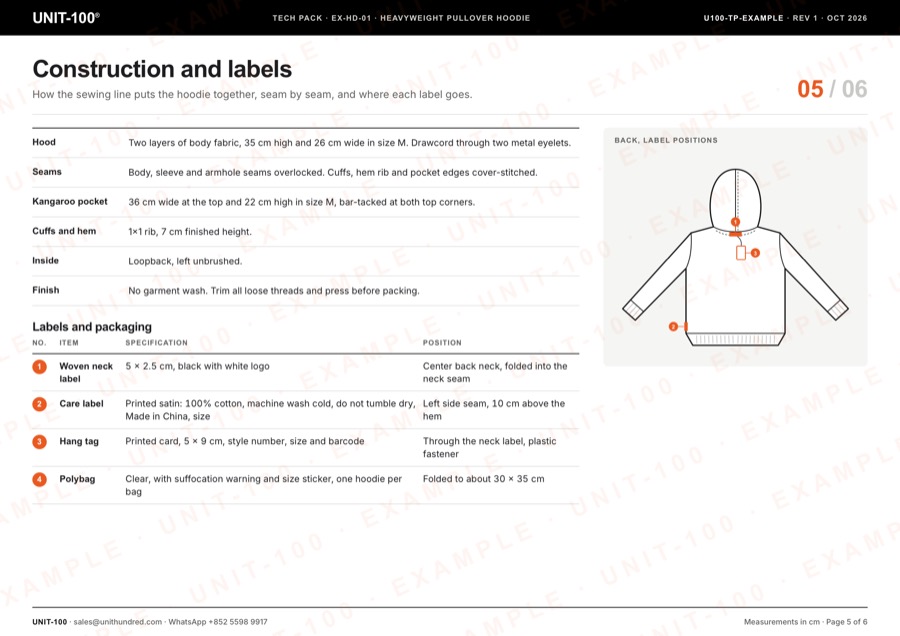

8. Construction notes
The construction notes tell the sewing line how the hoodie is put together, seam by seam.
- Hood: two layers of body fabric, 35 cm high and 26 cm wide in size M, drawcord through two metal eyelets.
- Seams: body, sleeve and armhole seams overlocked; cuffs, hem rib and pocket edges cover-stitched.
- Kangaroo pocket: 36 cm wide at the top and 22 cm high in size M, bar-tacked at both top corners.
- Cuffs and hem: 1x1 rib, 7 cm finished height.
- Inside: loopback, left unbrushed.
- Finish: no garment wash; trim all loose threads and press before packing.

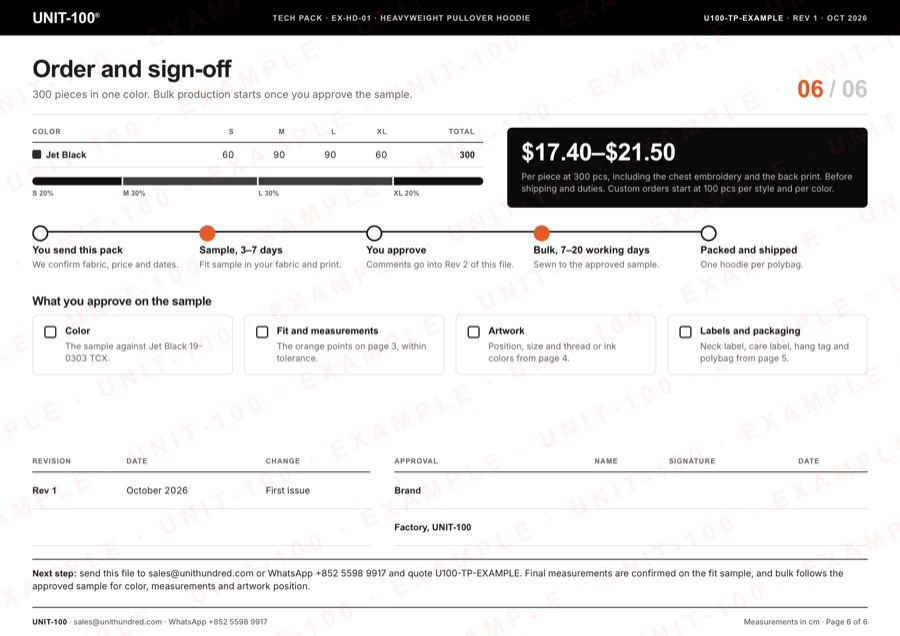

9. Quantity and size breakdown
This order is 300 pcs in one color, split S 60, M 90, L 90, XL 60.
| Color | S | M | L | XL | Total |
|---|---|---|---|---|---|
| Jet Black | 60 | 90 | 90 | 60 | 300 |
Custom orders start at 100 pcs per style and per color; stock-based orders from 50 pcs.
10. Notes and sign-off
The last page records every change to the file and the approvals that release it for bulk production.
| Revision | Date | Change |
|---|---|---|
| Rev 1 | October 2026 | First issue |
| Approval | Name | Signature | Date |
|---|---|---|---|
| Brand | ________ | ________ | ________ |
| Factory (UNIT-100) | ________ | ________ | ________ |
- Final measurements are confirmed on the fit sample.
- Bulk follows the approved PP sample for color, measurements and artwork position.
What this hoodie costs and how long it takes
At 300 pcs this hoodie costs $17.40–$21.50 per piece including the chest embroidery and the back print, before shipping and duties, and bulk production takes 7–20 working days after sample approval.
| Item | This example |
|---|---|
| Order | 300 pcs: S 60 / M 90 / L 90 / XL 60 |
| Fabric | 380gsm 100% cotton loopback French terry |
| Decoration | Small chest embroidery + large back screen print |
| Garment wash | None |
| Price per piece, 300 pcs (USD) | $17.40–$21.50 |
| Bulk lead time | 7–20 working days, after the sample (3–7 days) is approved |
Prices are before shipping and duties.
